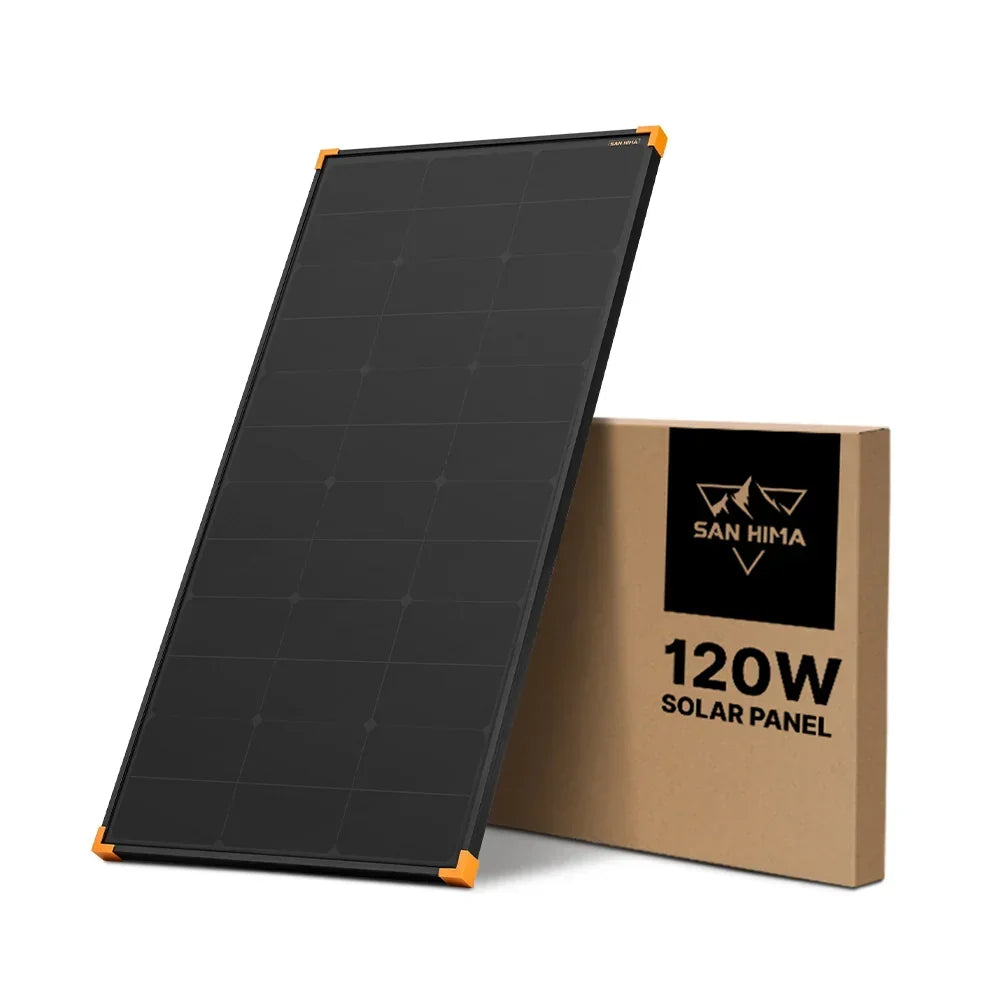

San Hima 120W Mono-HPBC Fixed Solar Panel Power Bypass Caravan Camping Battery

San Hima 120W Mono-HPBC Fixed Solar Panel Power Bypass Caravan Camping Battery

SKU: SH-FISED-BC120W-DD
Regular price $60.00 AUD
Regular price $150.00 AUD Sale price $60.00 AUD
Sale Sold out
Taxes included.
Stock: 6

Inspection and Pickup available at Showroom, usually within 1 hour.

This San Hima 120W fixed solar panel uses back-contact monocrystalline HPBC cells, with module efficiency of up to 25. Bypass diodes are designed to keep the panel generating power in partial shade, such as shadows from trees or roof racks crossing the panel.

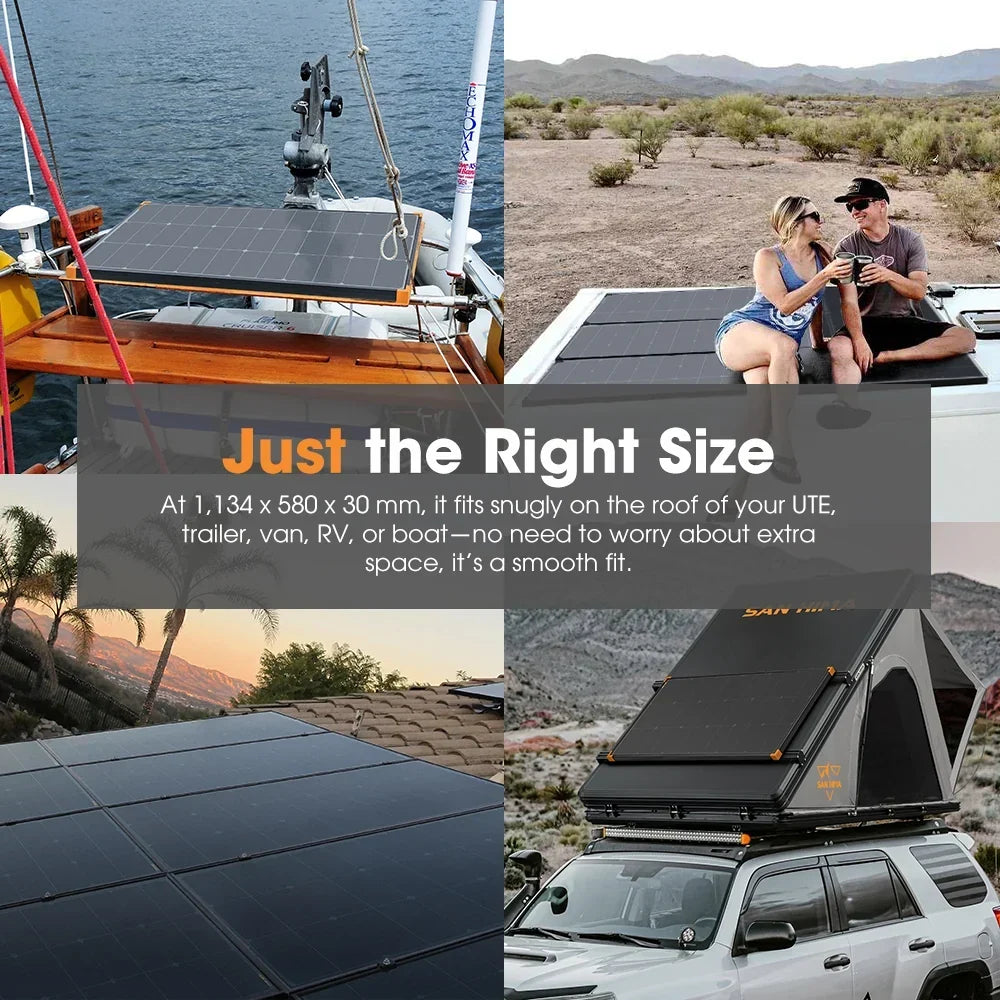

Up to four panels can be connected in series or parallel. The panel has an IP68 rating, a 3.2mm anti-reflective tempered glass front and an aluminium frame with corner protectors. It measures 1,134 x 580 x 30 mm.

Features

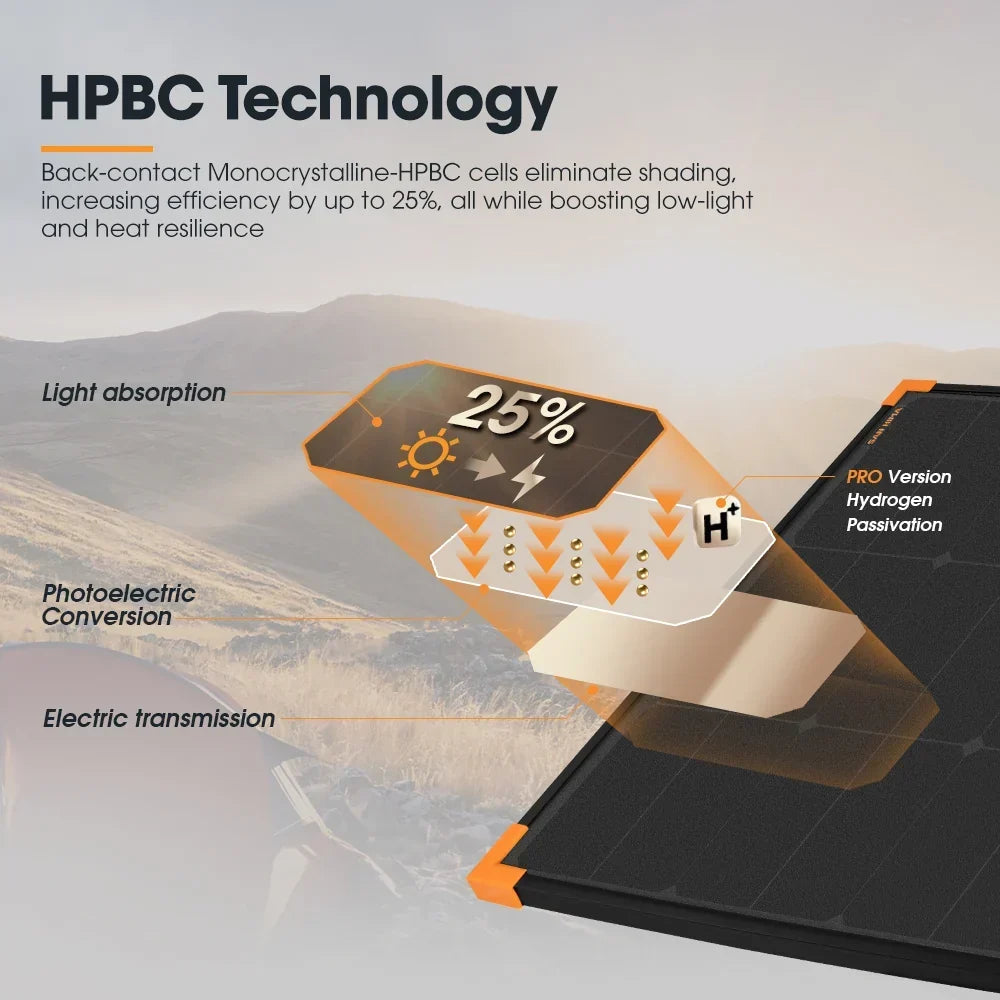

  • Back-contact monocrystalline HPBC cells with module efficiency of up to 25

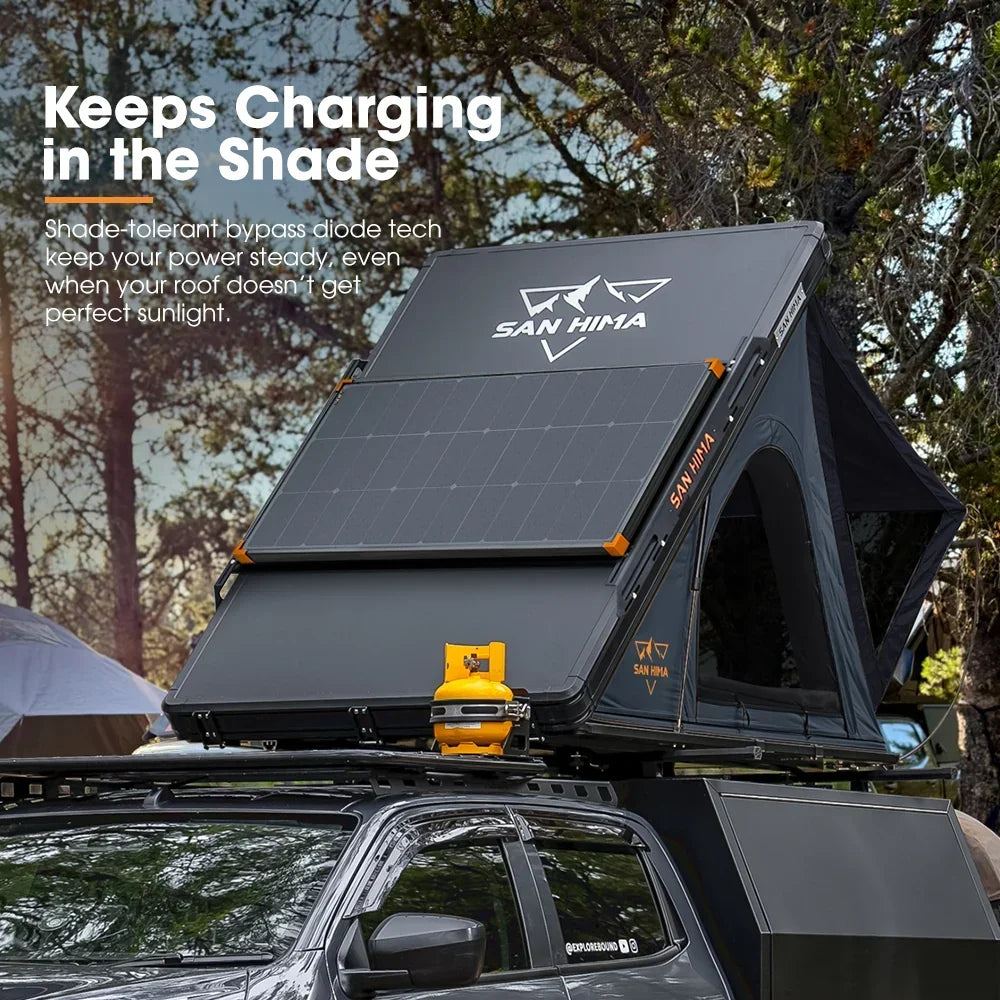

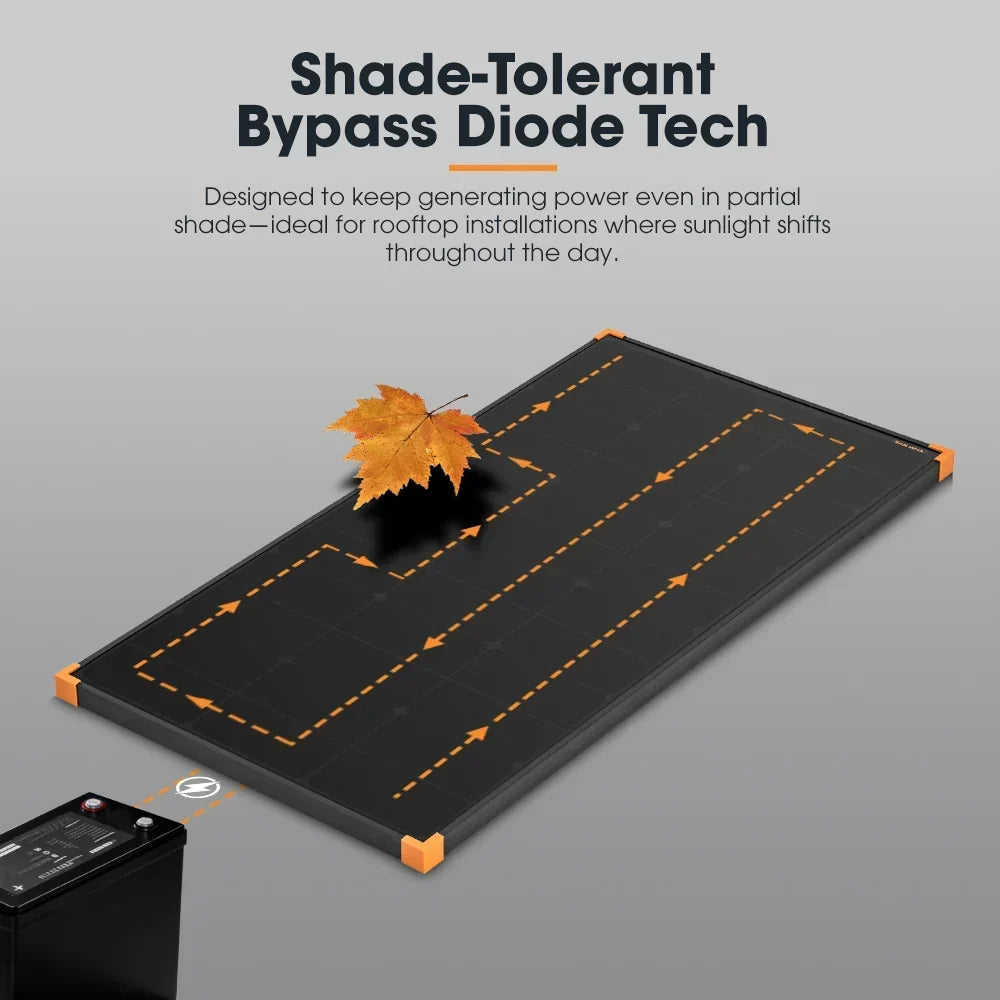

  • Bypass diodes designed to keep generating power in partial shade
  • Up to 10A output at 12V
  • Connect up to 4 panels in series or parallel
  • IP68 rated, fully waterproof and dustproof
  • 3.2mm anti-reflective tempered glass front
  • Reinforced aluminium frame with corner protectors

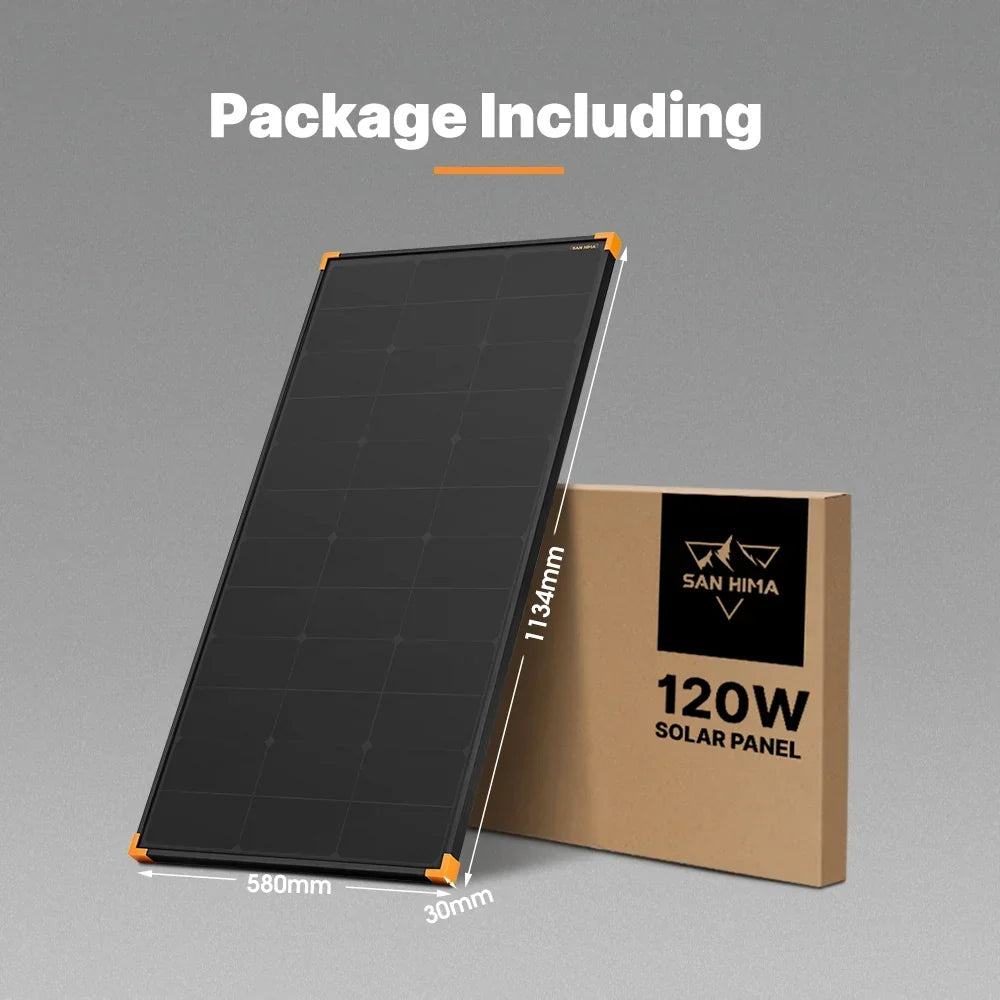

  • Dimensions: 1,134 x 580 x 30 mm
  • Compatible with San Hima solar charge controllers
  • All-black design

Specifications

  • Solar Cell Type: Monocrystalline-HPBC
  • Maximum Power: 120W
  • Open Circuit Voltage (VOC): 26.36V
  • Short Circuit Current (ISC): 6.01A
  • Max Power Voltage (VMP): 20.49V
  • Max Power Current (IMP): 5.86A
  • Module Efficiency: Up to 25
  • Maximum System Voltage: 1000V
  • Maximum Series Fuse Rating: 20A
  • IP Rating: IP-68
  • Operating Temperature: -40°C~85°C
  • Nominal Operating Cell Temerature (NOCT): 45±2℃brMax Series/Parallel Connections: 4S/4P
  • Power Tolerance: ±3
  • Output Tolerance: ±3
  • Front: Tempered Glass
  • Frame: Aluminium

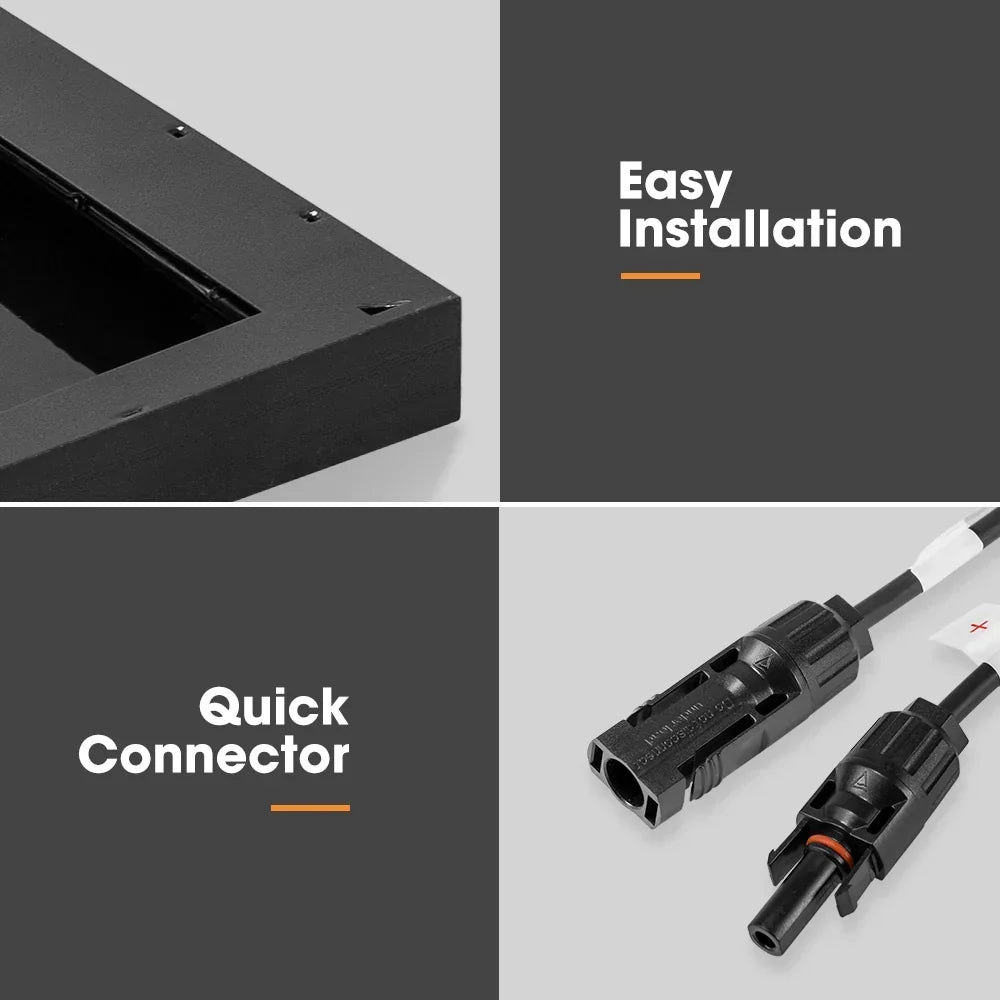

  • Connectors: MC4
  • Prackage Size: 116.1 x 60.2 x 5.7 cm(LxWxH)
  • Gross Weight: 8.55kg

=====================================
